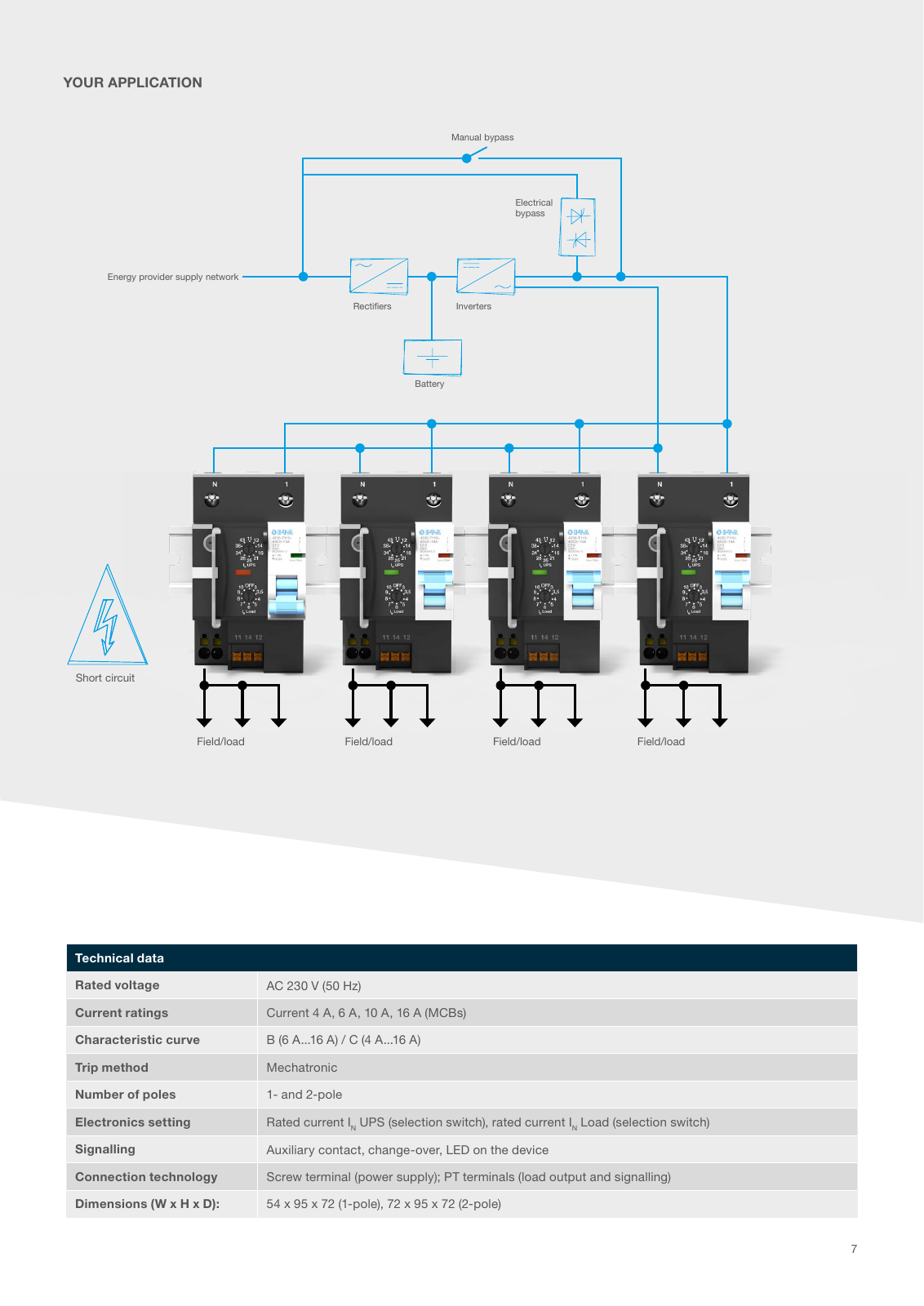

Energy provider supply network Inverters Battery Electrical bypass Manual bypass Rectifiers Field load Field load Field load Short circuit Field load Technical data Rated voltage AC 230 V 50 Hz Current ratings Current 4 A 6 A 10 A 16 A MCBs Characteristic curve B 6 A 16 A C 4 A 16 A Trip method Mechatronic Number of poles 1 and 2 pole Electronics setting Rated current IN UPS selection switch rated current IN Load selection switch Signalling Auxiliary contact change over LED on the device Connection technology Screw terminal power supply PT terminals load output and signalling Dimensions W x H x D 54 x 95 x 72 1 pole 72 x 95 x 72 2 pole YOUR APPLICATION 7
