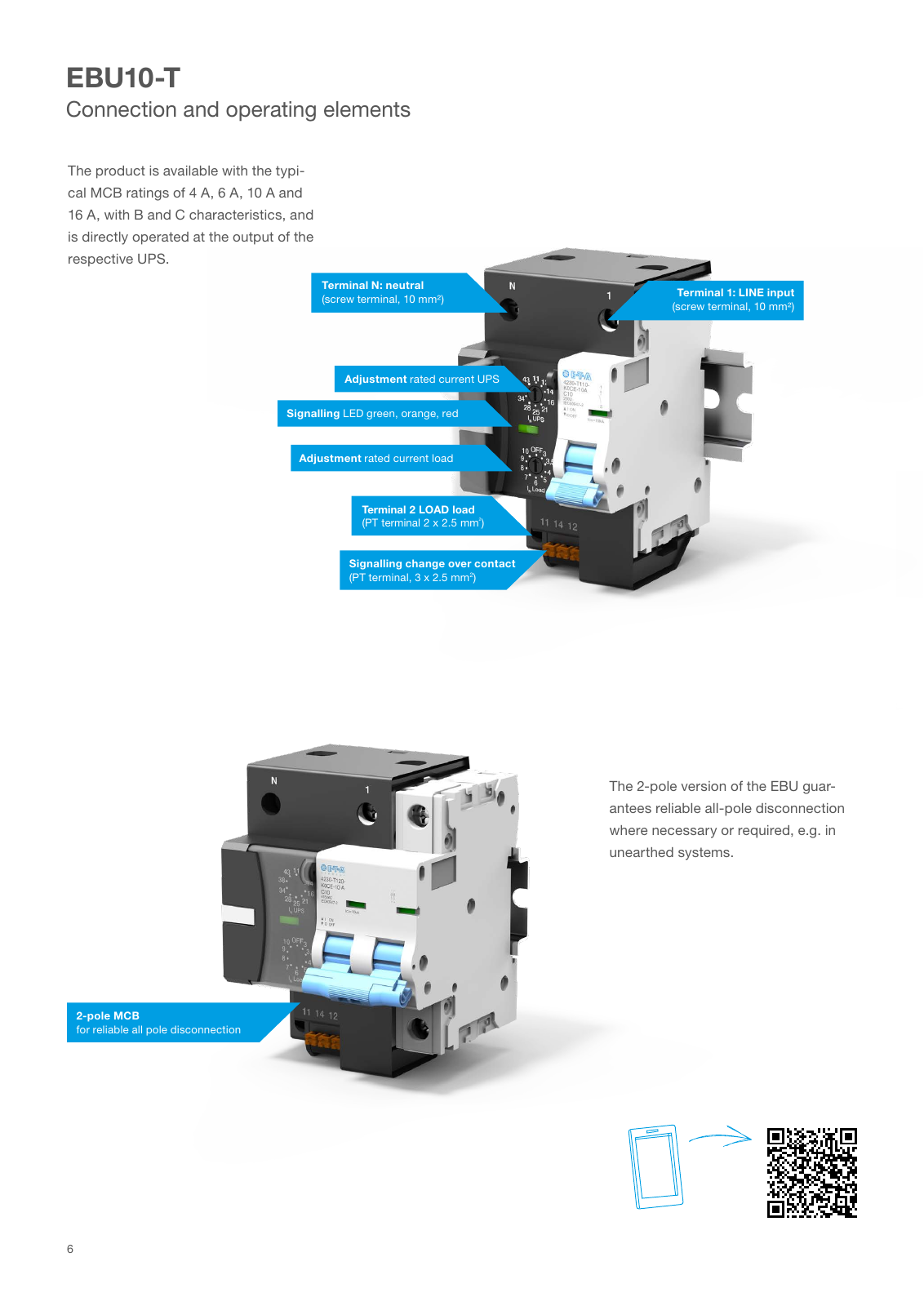

Adjustment rated current load Terminal 2 LOAD load PT terminal 2 x 2 5 mm2 Adjustment rated current UPS Signalling LED green orange red Terminal N neutral screw terminal 10 mm Terminal 1 LINE input screw terminal 10 mm Signalling change over contact PT terminal 3 x 2 5 mm2 2 pole MCB for reliable all pole disconnection The product is available with the typi cal MCB ratings of 4 A 6 A 10 A and 16 A with B and C characteristics and is directly operated at the output of the respective UPS The 2 pole version of the EBU guar antees reliable all pole disconnection where necessary or required e g in unearthed systems EBU10 T Connection and operating elements 6
