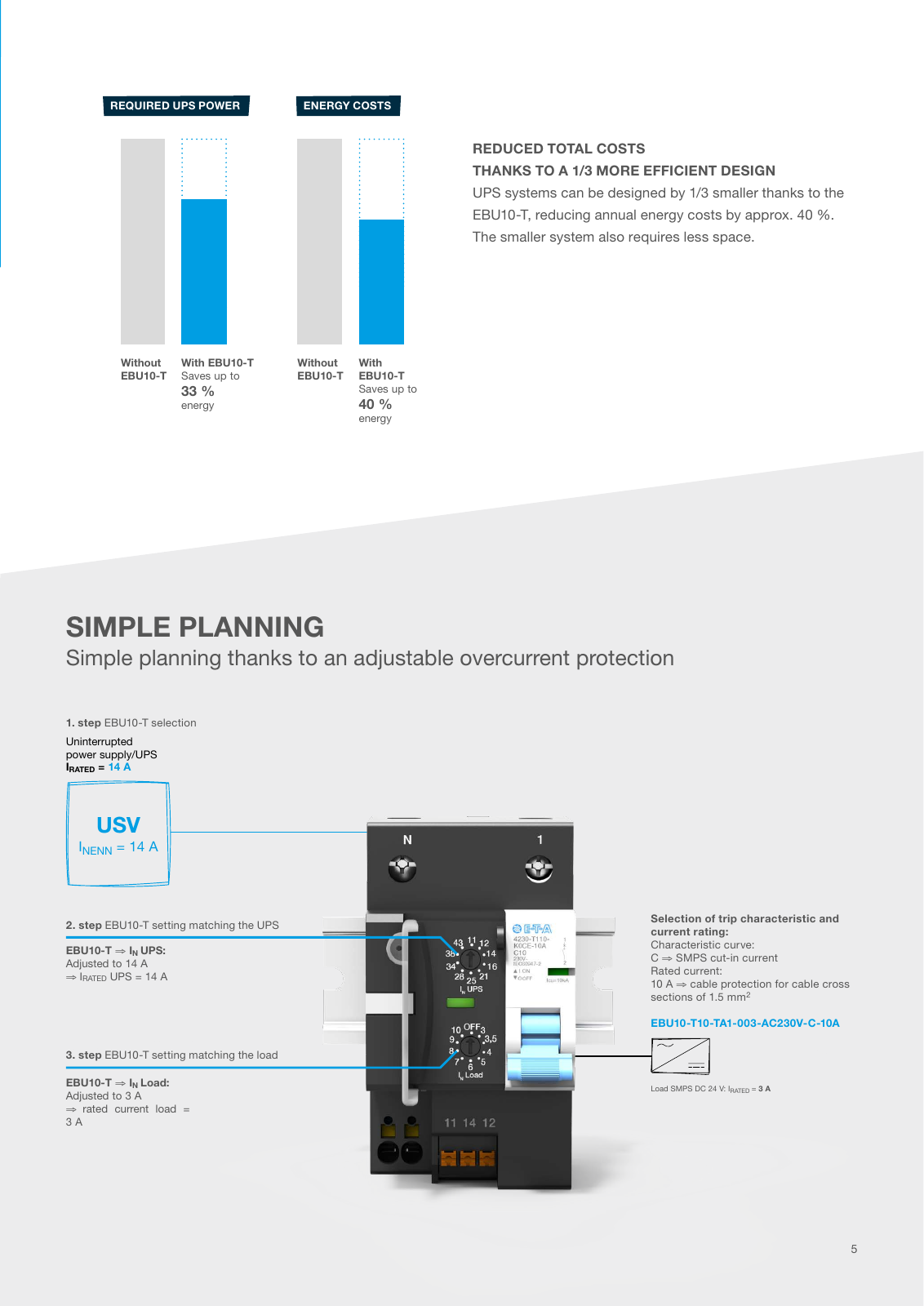

USV INENN 14 A Uninterrupted power supply UPS IRATED 14 A REDUCED TOTAL COSTS THANKS TO A 1 3 MORE EFFICIENT DESIGN UPS systems can be designed by 1 3 smaller thanks to the EBU10 T reducing annual energy costs by approx 40 The smaller system also requires less space Without EBU10 T Without EBU10 T With EBU10 T Saves up to 40 energy With EBU10 T Saves up to 33 energy Load SMPS DC 24 V IRATED 3 A Selection of trip characteristic and current rating Characteristic curve C SMPS cut in current Rated current 10 A cable protection for cable cross sections of 1 5 mm2 EBU10 T10 TA1 003 AC230V C 10A EBU10 T IN UPS Adjusted to 14 A IRATED UPS 14 A EBU10 T IN Load Adjusted to 3 A rated current load 3 A SIMPLE PLANNING Simple planning thanks to an adjustable overcurrent protection 1 step EBU10 T selection 2 step EBU10 T setting matching the UPS 3 step EBU10 T setting matching the load REQUIRED UPS POWER ENERGY COSTS 5
