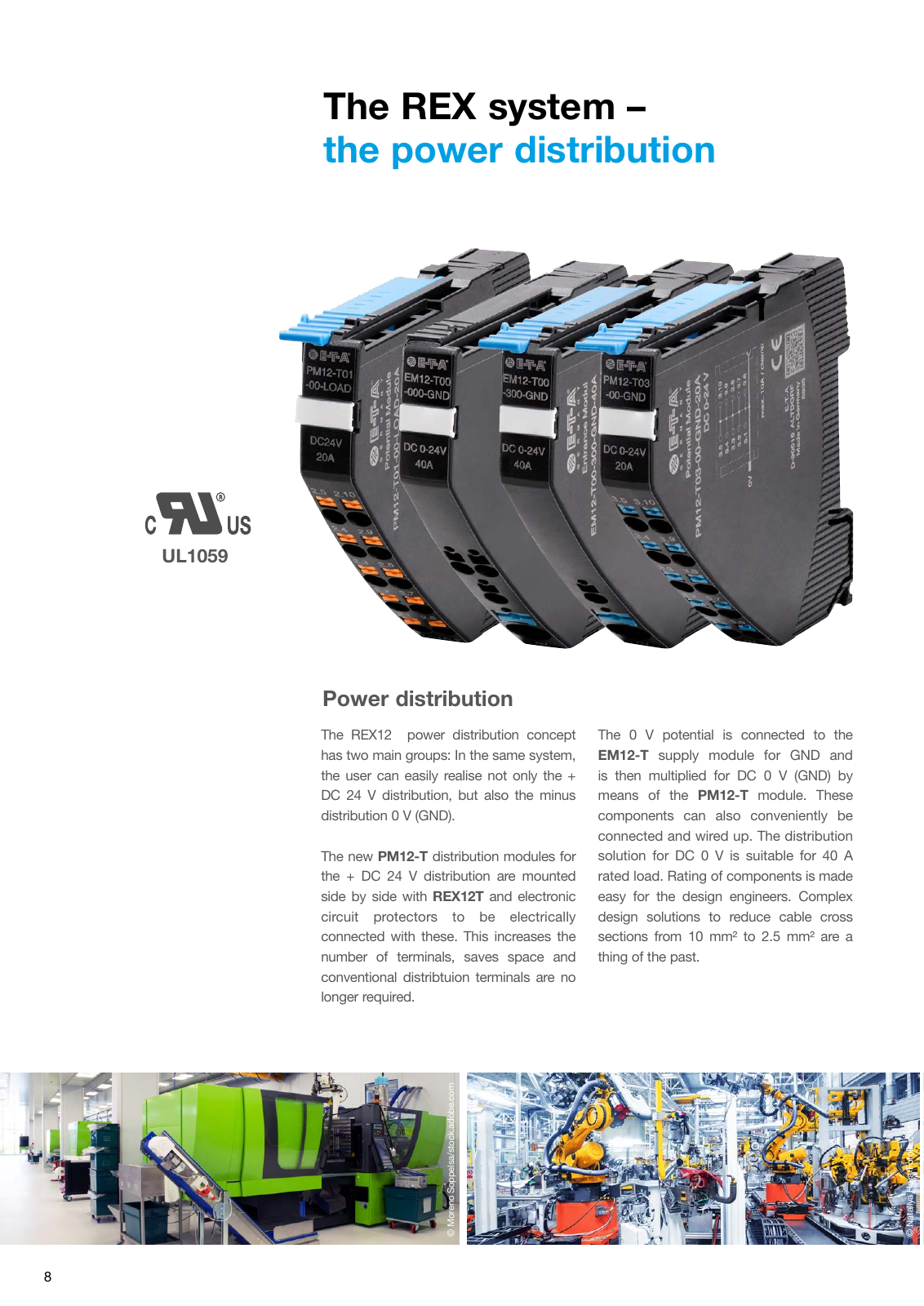

The REX system the power distribution Power distribution 8 The REX12 power distribution concept has two main groups In the same system the user can easily realise not only the DC 24 V distribution but also the minus distribution 0 V GND The new PM12 T distribution modules for the DC 24 V distribution are mounted side by side with REX12T and electronic circuit protectors to be electrically connected with these This increases the number of terminals saves space and conventional distribtuion terminals are no longer required The 0 V potential is connected to the EM12 T supply module for GND and is then multiplied for DC 0 V GND by means of the PM12 T module These components can also conveniently be connected and wired up The distribution solution for DC 0 V is suitable for 40 A rated load Rating of components is made easy for the design engineers Complex design solutions to reduce cable cross sections from 10 mm to 2 5 mm are a thing of the past UL1059 M or en o S op pe ls a st oc k ad ob e co m N at al iy a H or a Fo to lia c om
