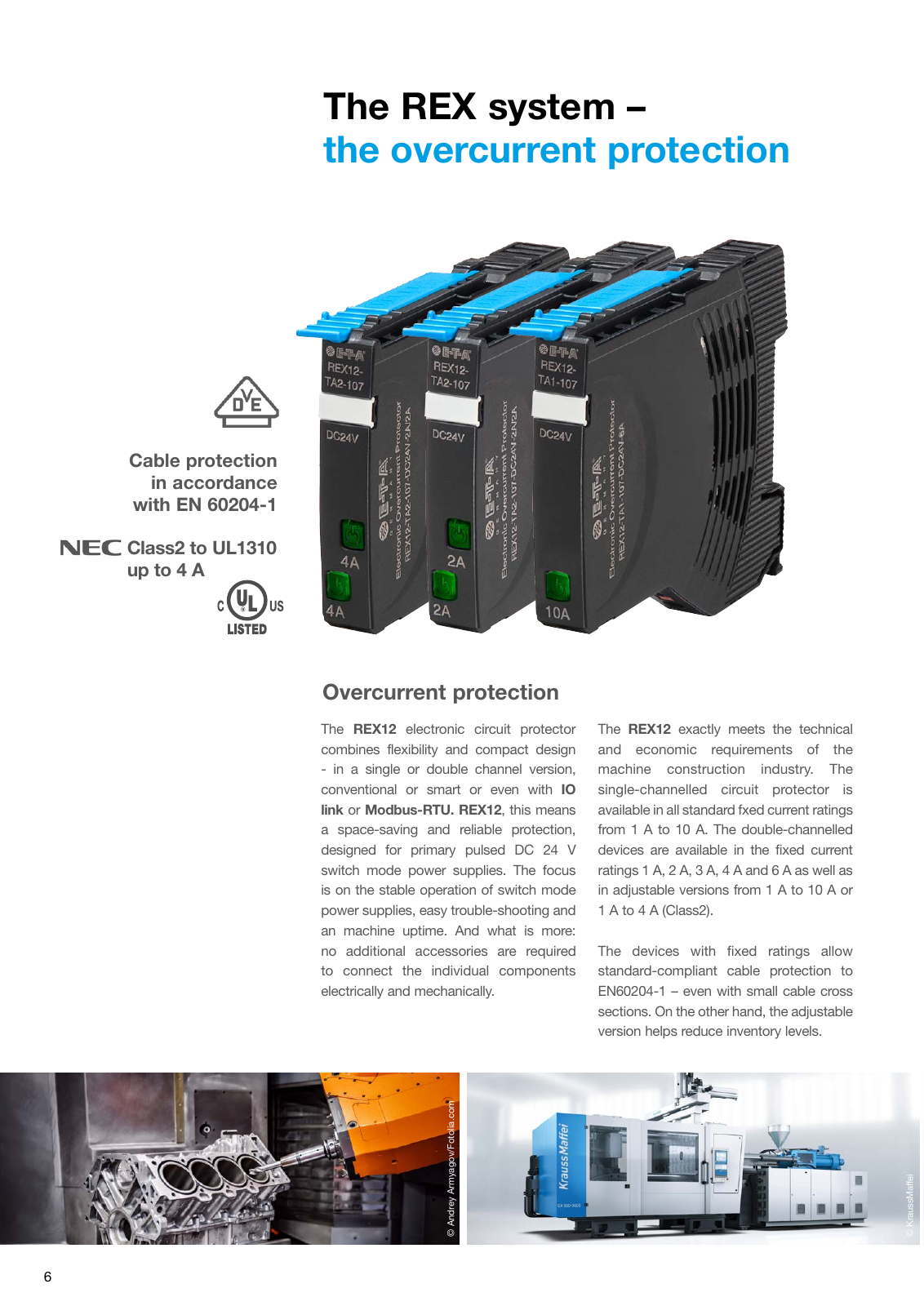

The REX system the overcurrent protection Overcurrent protection 6 The REX12 electronic circuit protector combines flexibility and compact design in a single or double channel version conventional or smart or even with IO link or Modbus RTU REX12 this means a space saving and reliable protection designed for primary pulsed DC 24 V switch mode power supplies The focus is on the stable operation of switch mode power supplies easy trouble shooting and an machine uptime And what is more no additional accessories are required to connect the individual components electrically and mechanically Cable protection in accordance with EN 60204 1 Class2 to UL1310 up to 4 A The REX12 exactly meets the technical and economic requirements of the machine construction industry The single channelled circuit protector is available in all standard fxed current ratings from 1 A to 10 A The double channelled devices are available in the fixed current ratings 1 A 2 A 3 A 4 A and 6 A as well as in adjustable versions from 1 A to 10 A or 1 A to 4 A Class2 The devices with fixed ratings allow standard compliant cable protection to EN60204 1 even with small cable cross sections On the other hand the adjustable version helps reduce inventory levels A nd re y A rm ya go v Fo to lia c om K ra us sM af fe i
