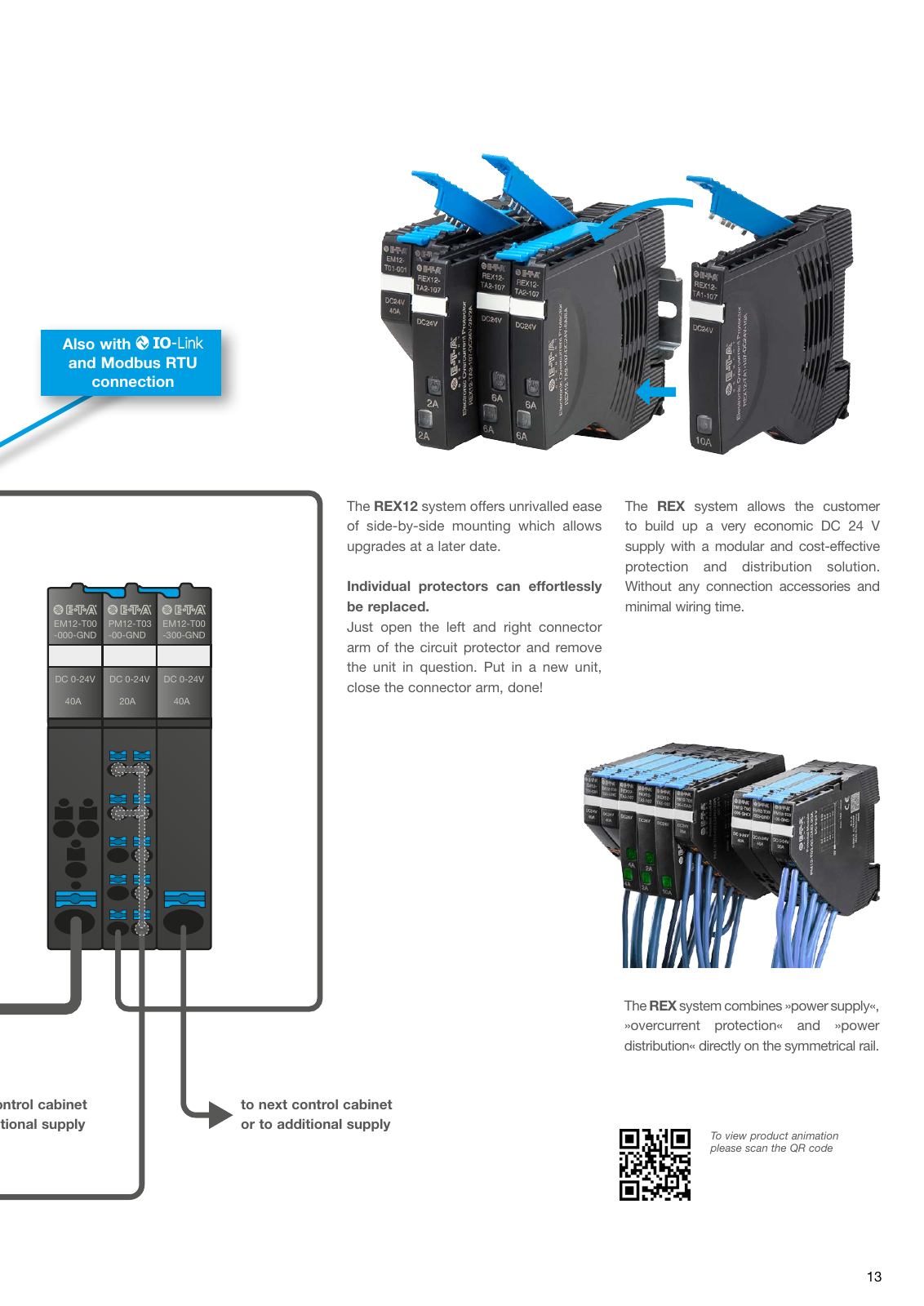

13 CPU EM12 T00 100 LINE DC24V 40A PM12 T03 00 GND DC 0 24V 20A EM12 T00 000 GND DC 0 24V 40A EM12 T00 300 GND DC 0 24V 40A DC24V REX12 TA2 107 DC24V REX12 TA2 107 EM12 T01 001 DC24V 40A REX12 TA1 107 DC24V 10A 2A 2A 6A 6A I1 AC PM12 T01 00 LOAD DC24V 20A M M 4 7 Zum nächsten Schaltschrank oder zusätzliche Einspeisung Zum nächsten Schaltschrank oder zusätzliche Einspeisung Schaltnetzteil Power supply 4230 T110 The REX12 system offers unrivalled ease of side by side mounting which allows upgrades at a later date Individual protectors can effortlessly be replaced Just open the left and right connector arm of the circuit protector and remove the unit in question Put in a new unit close the connector arm done The REX system combines power supply overcurrent protection and power distribution directly on the symmetrical rail to next control cabinet or to additional supply to next control cabinet or to additional supply The REX system allows the customer to build up a very economic DC 24 V supply with a modular and cost effective protection and distribution solution Without any connection accessories and minimal wiring time Also with and Modbus RTU connection To view product animation please scan the QR code
