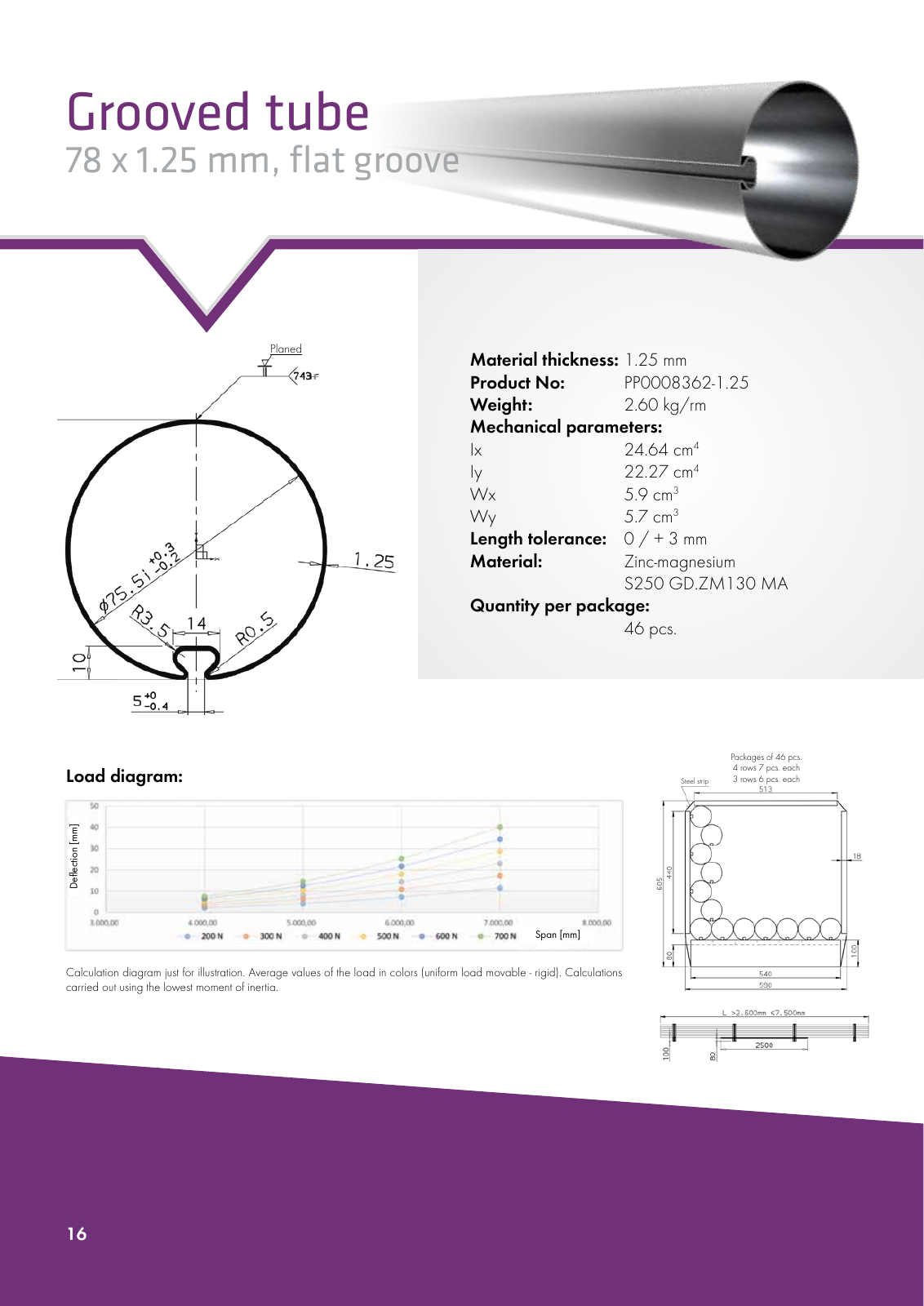

Material thickness 1 25 mm Product No PP0008362 1 25 Weight 2 60 kg rm Mechanical parameters Ix 24 64 cm4 Iy 22 27 cm4 Wx 5 9 cm3 Wy 5 7 cm3 Length tolerance 0 3 mm Material Zinc magnesium S250 GD ZM130 MA Quantity per package 46 pcs 16 Grooved tube 78 x 1 25 mm flat groove Load diagram Calculation diagram just for illustration Average values of the load in colors uniform load movable rigid Calculations carried out using the lowest moment of inertia D ef le ct io n m m Span mm Packages of 46 pcs 4 rows 7 pcs each 3 rows 6 pcs eachSteel strip Planed
