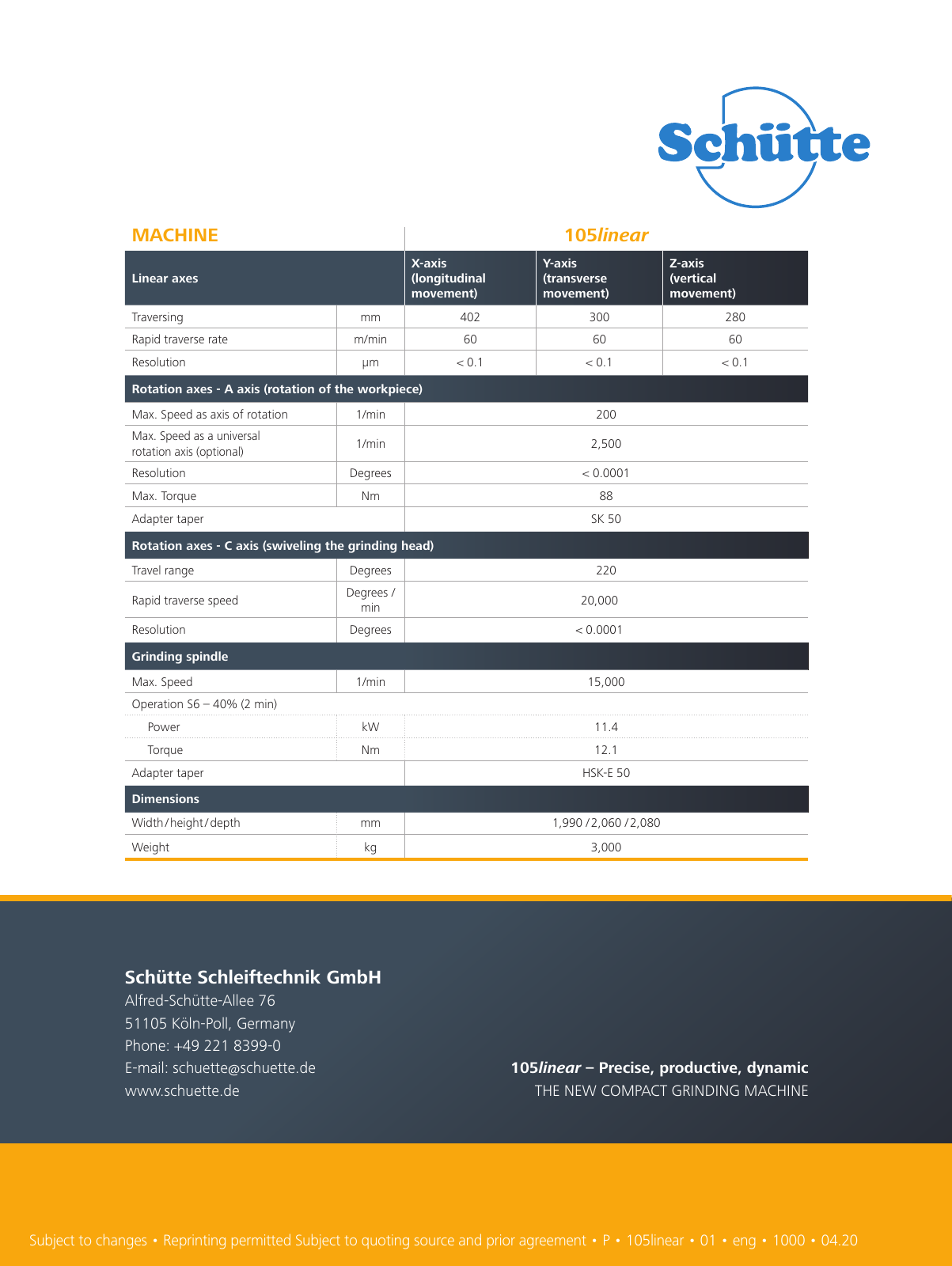

105linear Precise productive dynamic THE NEW COMPACT GRINDING MACHINE Subject to changes Reprinting permitted Subject to quoting source and prior agreement P 105linear 01 eng 1000 04 20 MACHINE 105linear Linear axes X axis longitudinal movement Y axis transverse movement Z axis vertical movement Traversing mm 402 300 280 Rapid traverse rate m min 60 60 60 Resolution µm 0 1 0 1 0 1 Rotation axes A axis rotation of the workpiece Max Speed as axis of rotation 1 min 200 Max Speed as a universal rotation axis optional 1 min 2 500 Resolution Degrees 0 0001 Max Torque Nm 88 Adapter taper SK 50 Rotation axes C axis swiveling the grinding head Travel range Degrees 220 Rapid traverse speed Degrees min 20 000 Resolution Degrees 0 0001 Grinding spindle Max Speed 1 min 15 000 Operation S6 40 2 min Power kW 11 4 Torque Nm 12 1 Adapter taper HSK E 50 Dimensions Width height depth mm 1 990 2 060 2 080 Weight kg 3 000 Schütte Schleiftechnik GmbH Alfred Schütte Allee 76 51105 Köln Poll Germany Phone 49 221 8399 0 E mail schuette schuette de www schuette de
