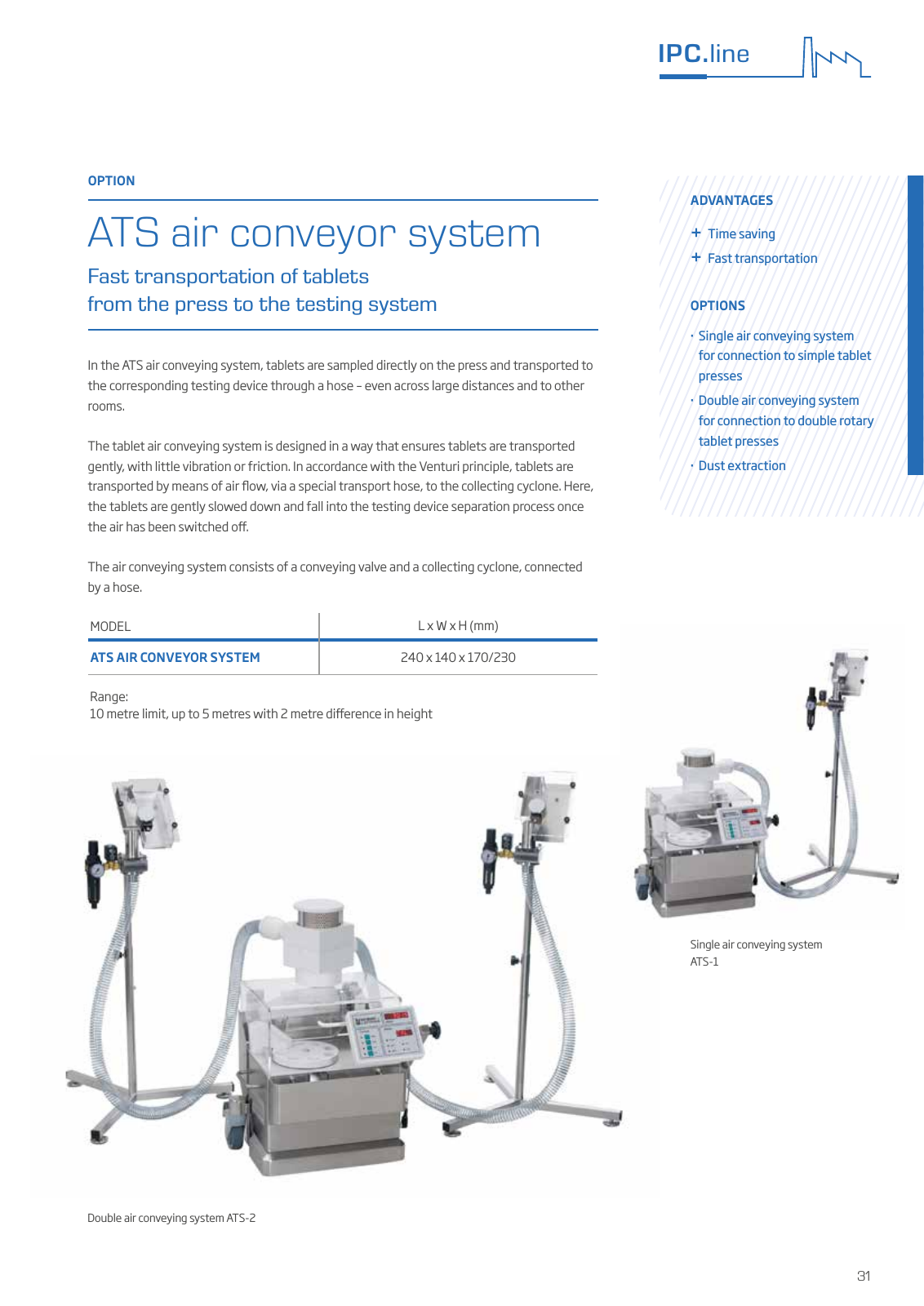

IPC line 31 ADVANTAGES Time saving Fast transportation OPTIONS Single air conveying system for connection to simple tablet presses Double air conveying system for connection to double rotary tablet presses Dust extraction OPTION ATS air conveyor system Fast transportation of tablets from the press to the testing system In the ATS air conveying system tablets are sampled directly on the press and transported to the corresponding testing device through a hose even across large distances and to other rooms The tablet air conveying system is designed in a way that ensures tablets are transported gently with little vibration or friction In accordance with the Venturi principle tablets are transported by means of air flow via a special transport hose to the collecting cyclone Here the tablets are gently slowed down and fall into the testing device separation process once the air has been switched off The air conveying system consists of a conveying valve and a collecting cyclone connected by a hose MODEL L x W x H mm ATS AIR CONVEYOR SYSTEM 240 x 140 x 170 230 Range 10 metre limit up to 5 metres with 2 metre difference in height Single air conveying system ATS 1 Double air conveying system ATS 2
