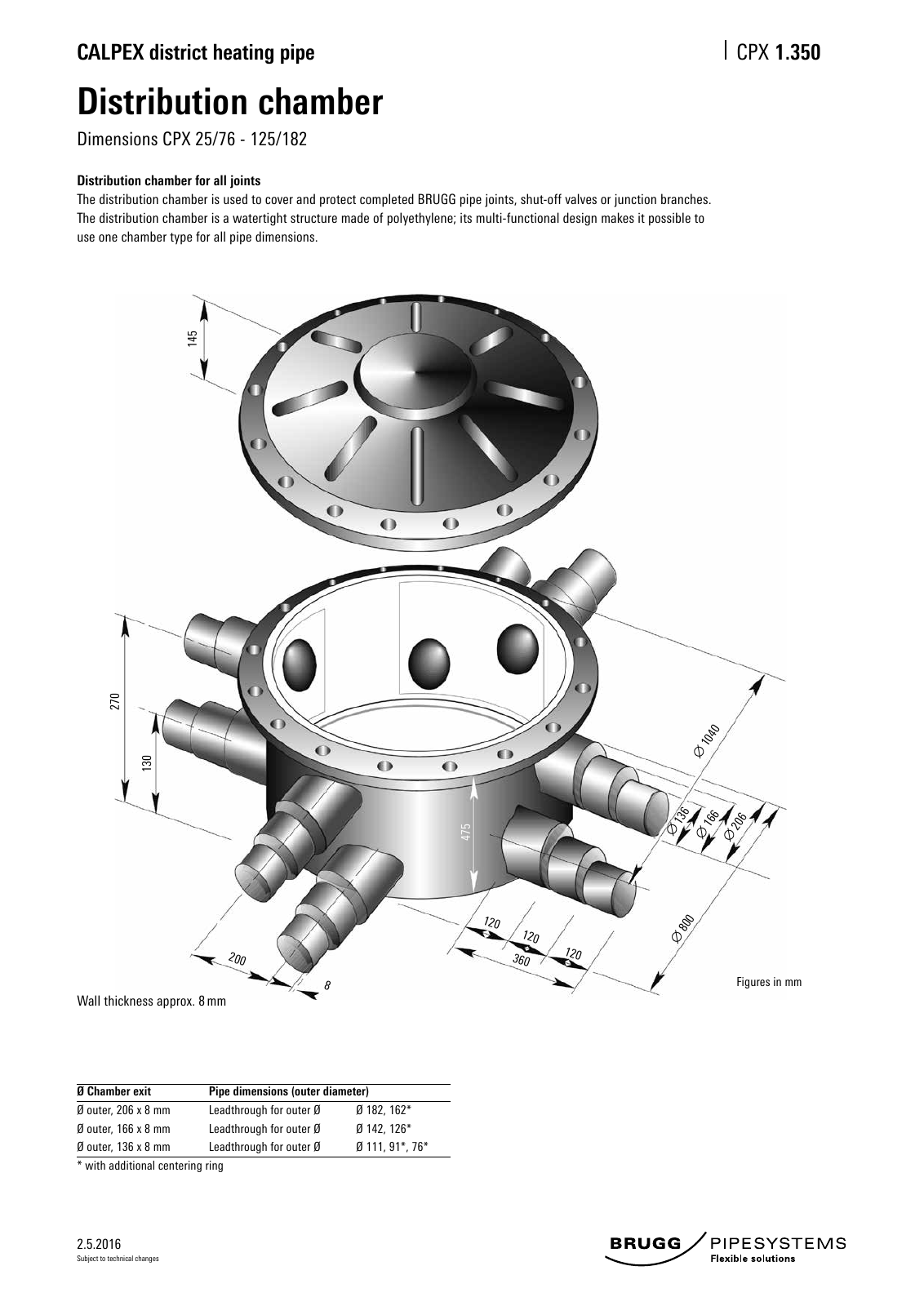

9 3 2015 CALPEX district heating pipe CPX Subject to technical changes Distribution chamber Dimensions CPX 25 76 125 182 Distribution chamber for all joints The distribution chamber is used to cover and protect completed BRUGG pipe joints shut off valves or junction branches The distribution chamber is a watertight structure made of polyethylene its multi functional design makes it possible to use one chamber type for all pipe dimensions Wall thickness approx 8 mm 1 350 Ø Chamber exit Pipe dimensions outer diameter Ø outer 206 x 8 mm Leadthrough for outer Ø Ø 182 162 Ø outer 166 x 8 mm Leadthrough for outer Ø Ø 142 126 Ø outer 136 x 8 mm Leadthrough for outer Ø Ø 111 91 76 with additional centering ring Figures in mm 14 5 27 0 13 0 47 5 200 8 120 120 120360 80 0 20 6 16 6 13 6 10 40
