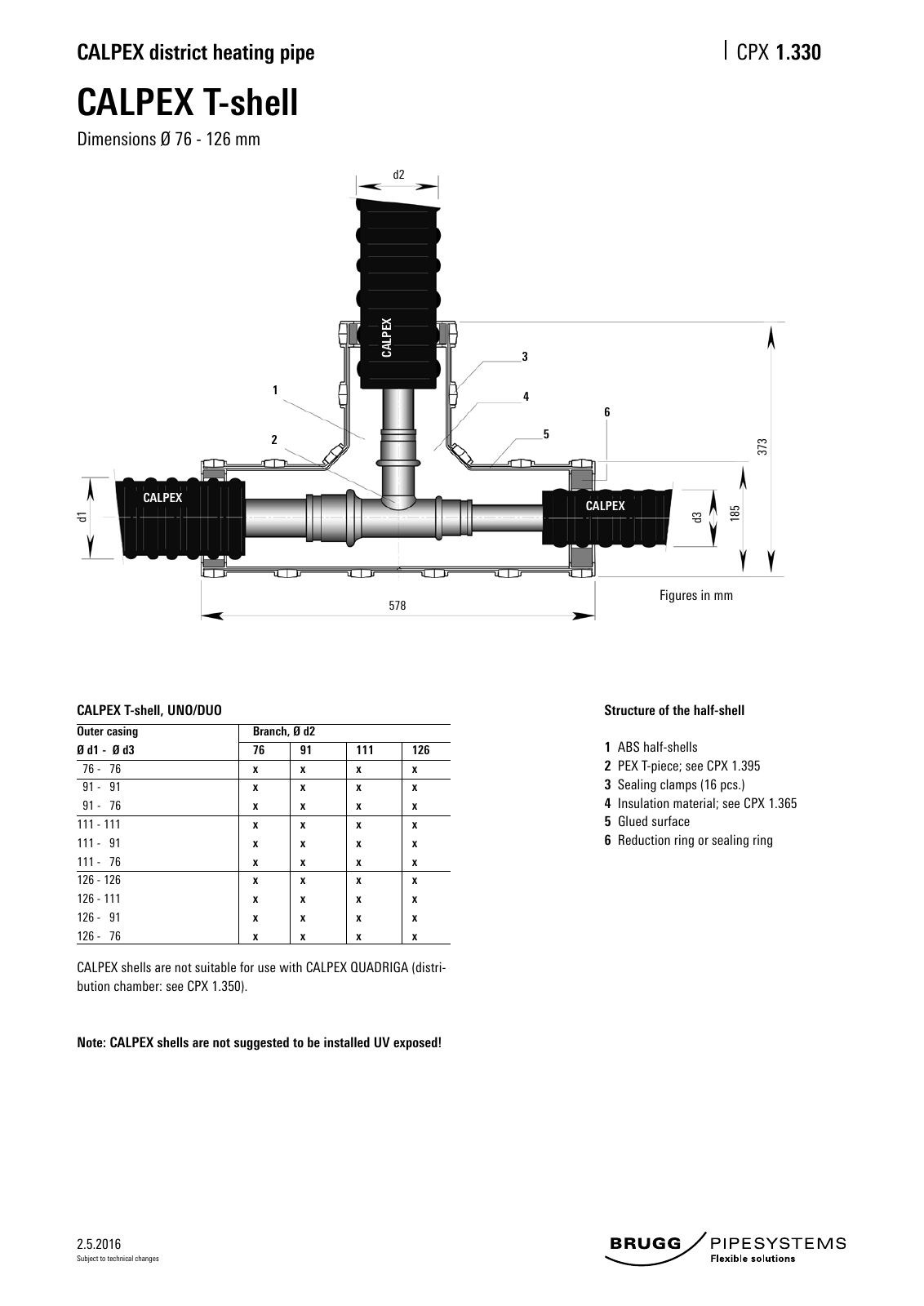

9 3 2015 CALPEX district heating pipe CPX Subject to technical changes CALPEX CALPEX CA LP EX d2 1 2 5 4 3 6 578 37 3 d1 d3 18 5 1 330 CALPEX T shell Dimensions Ø 76 126 mm CALPEX T shell UNO DUO Outer casing Branch Ø d2 Ø d1 Ø d3 76 91 111 126 76 76 x x x x 91 91 x x x x 91 76 x x x x 111 111 x x x x 111 91 x x x x 111 76 x x x x 126 126 x x x x 126 111 x x x x 126 91 x x x x 126 76 x x x x Structure of the half shell 1 ABS half shells 2 PEX T piece see CPX 1 395 3 Sealing clamps 16 pcs 4 Insulation material see CPX 1 365 5 Glued surface 6 Reduction ring or sealing ring CALPEX shells are not suitable for use with CALPEX QUADRIGA distri bution chamber see CPX 1 350 Note CALPEX shells are not suggested to be installed UV exposed Figures in mm
