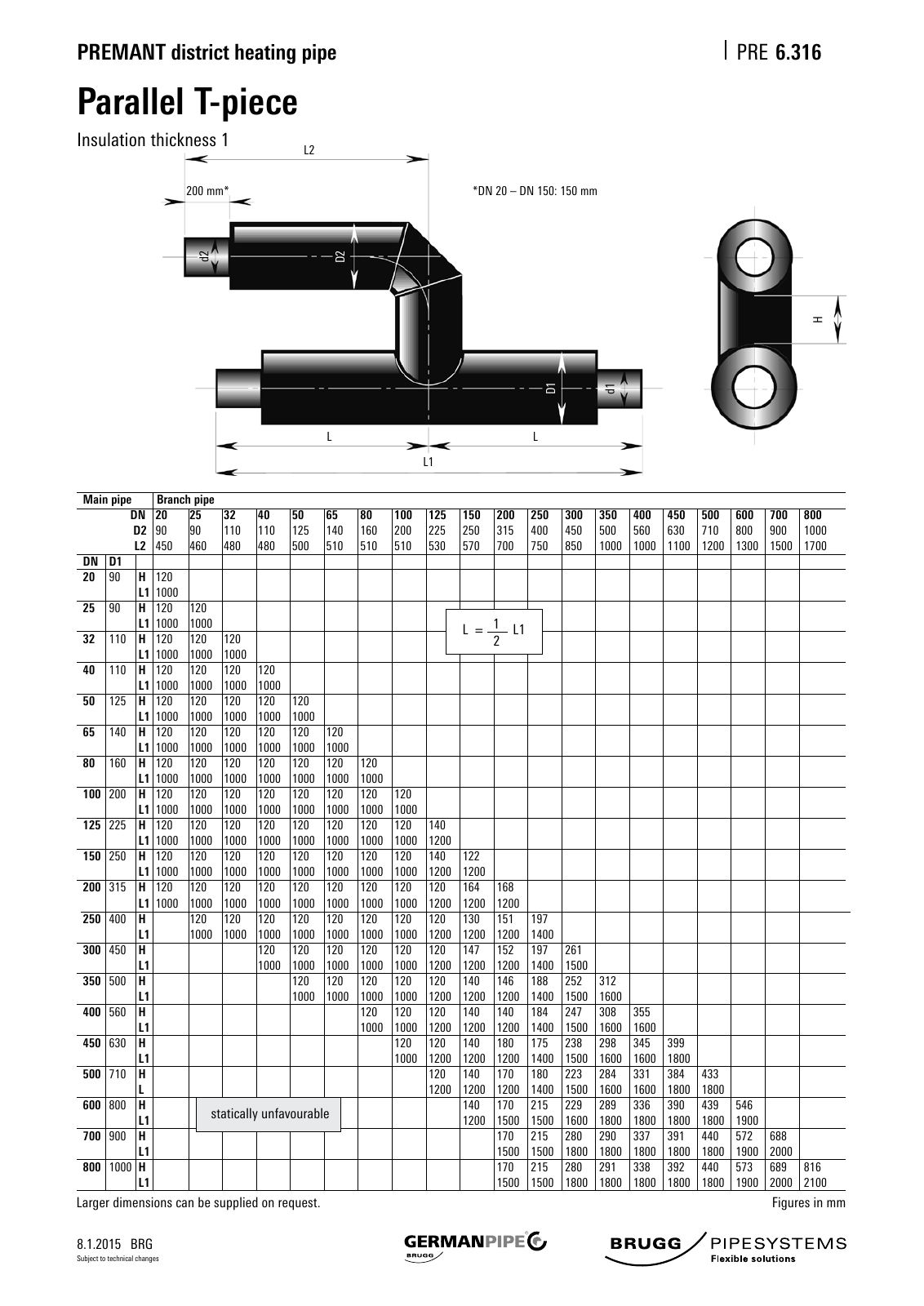

8 1 2015 BRG PREMANT district heating pipe PRE Subject to technical changes L2 L1 200 mm H d2 d1D1 D2 Parallel T piece Insulation thickness 1 6 316 LL DN 20 DN 150 150 mm Main pipe Branch pipe DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 D2 90 90 110 110 125 140 160 200 225 250 315 400 450 500 560 630 710 800 900 1000 L2 450 460 480 480 500 510 510 510 530 570 700 750 850 1000 1000 1100 1200 1300 1500 1700 DN D1 20 90 H 120 L1 1000 25 90 H 120 120 L1 1000 1000 32 110 H 120 120 120 L1 1000 1000 1000 40 110 H 120 120 120 120 L1 1000 1000 1000 1000 50 125 H 120 120 120 120 120 L1 1000 1000 1000 1000 1000 65 140 H 120 120 120 120 120 120 L1 1000 1000 1000 1000 1000 1000 80 160 H 120 120 120 120 120 120 120 L1 1000 1000 1000 1000 1000 1000 1000 100 200 H 120 120 120 120 120 120 120 120 L1 1000 1000 1000 1000 1000 1000 1000 1000 125 225 H 120 120 120 120 120 120 120 120 140 L1 1000 1000 1000 1000 1000 1000 1000 1000 1200 150 250 H 120 120 120 120 120 120 120 120 140 122 L1 1000 1000 1000 1000 1000 1000 1000 1000 1200 1200 200 315 H 120 120 120 120 120 120 120 120 120 164 168 L1 1000 1000 1000 1000 1000 1000 1000 1000 1200 1200 1200 250 400 H 120 120 120 120 120 120 120 120 130 151 197 L1 1000 1000 1000 1000 1000 1000 1000 1200 1200 1200 1400 300 450 H 120 120 120 120 120 120 147 152 197 261 L1 1000 1000 1000 1000 1000 1200 1200 1200 1400 1500 350 500 H 120 120 120 120 120 140 146 188 252 312 L1 1000 1000 1000 1000 1200 1200 1200 1400 1500 1600 400 560 H 120 120 120 140 140 184 247 308 355 L1 1000 1000 1200 1200 1200 1400 1500 1600 1600 450 630 H 120 120 140 180 175 238 298 345 399 L1 1000 1200 1200 1200 1400 1500 1600 1600 1800 500 710 H 120 140 170 180 223 284 331 384 433 L 1200 1200 1200 1400 1500 1600 1600 1800 1800 600 800 H 140 170 215 229 289 336 390 439 546 L1 1200 1500 1500 1600 1800 1800 1800 1800 1900 700 900 H 170 215 280 290 337 391 440 572 688 L1 1500 1500 1800 1800 1800 1800 1800 1900 2000 800 1000 H 170 215 280 291 338 392 440 573 689 816 L1 1500 1500 1800 1800 1800 1800 1800 1900 2000 2100 Figures in mm L 1 L1 2 Larger dimensions can be supplied on request statically unfavourable
