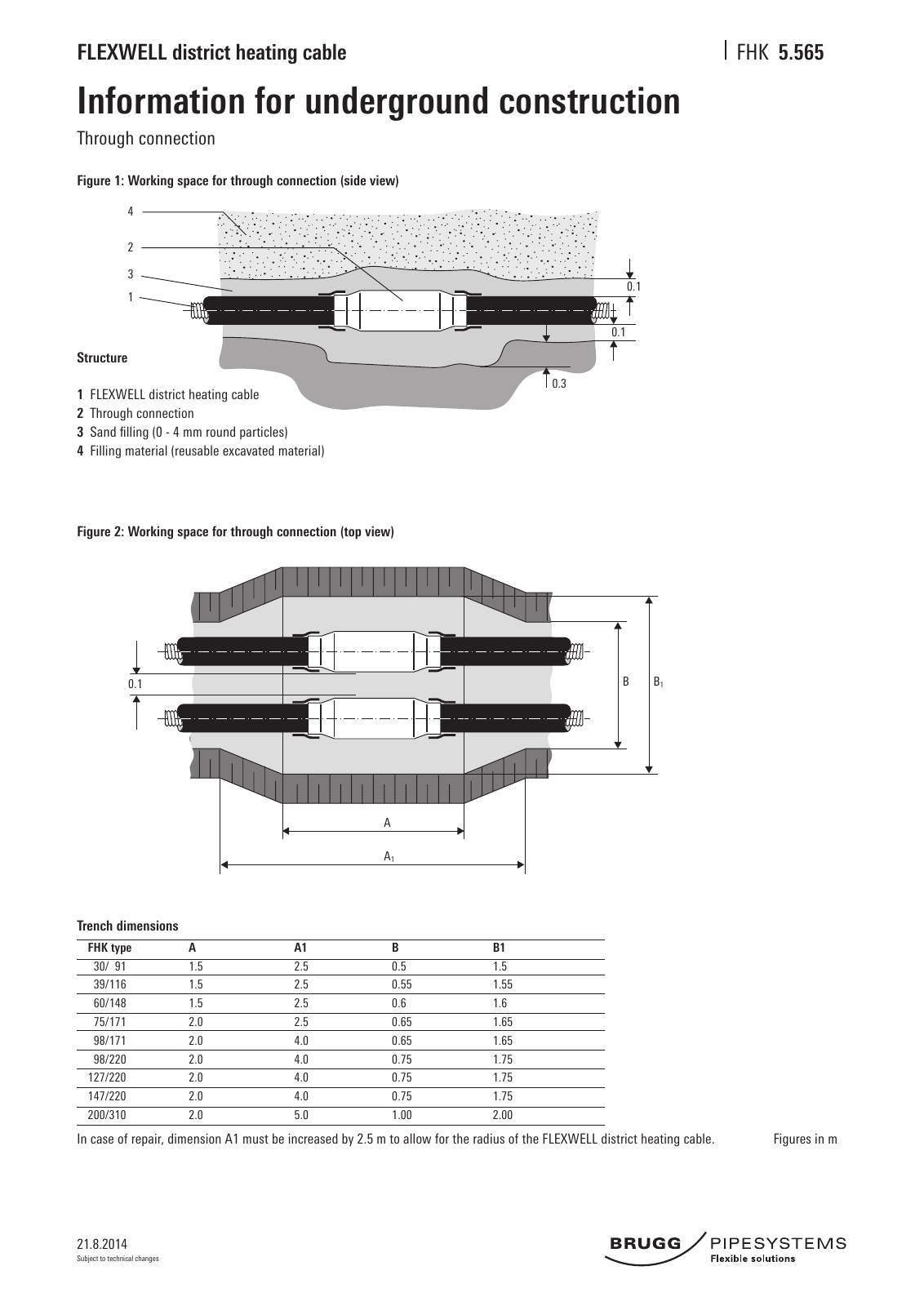

31 2 4 0 3 0 1 0 1 0 1 A A 1 B B1 21 8 2014 FLEXWELL district heating cable FHK Subject to technical changes Information for underground construction Through connection 5 565 Figure 1 Working space for through connection side view Figure 2 Working space for through connection top view FHK type A A1 B B1 30 91 1 5 2 5 0 5 1 5 39 116 1 5 2 5 0 55 1 55 60 148 1 5 2 5 0 6 1 6 75 171 2 0 2 5 0 65 1 65 98 171 2 0 4 0 0 65 1 65 98 220 2 0 4 0 0 75 1 75 127 220 2 0 4 0 0 75 1 75 147 220 2 0 4 0 0 75 1 75 200 310 2 0 5 0 1 00 2 00 In case of repair dimension A1 must be increased by 2 5 m to allow for the radius of the FLEXWELL district heating cable Structure 1 FLEX W E L L district heating cable 2 Through connection 3 Sand filling 0 4 mm round particles 4 Filling material reusable excavated material Figures in m Trench dimensions
