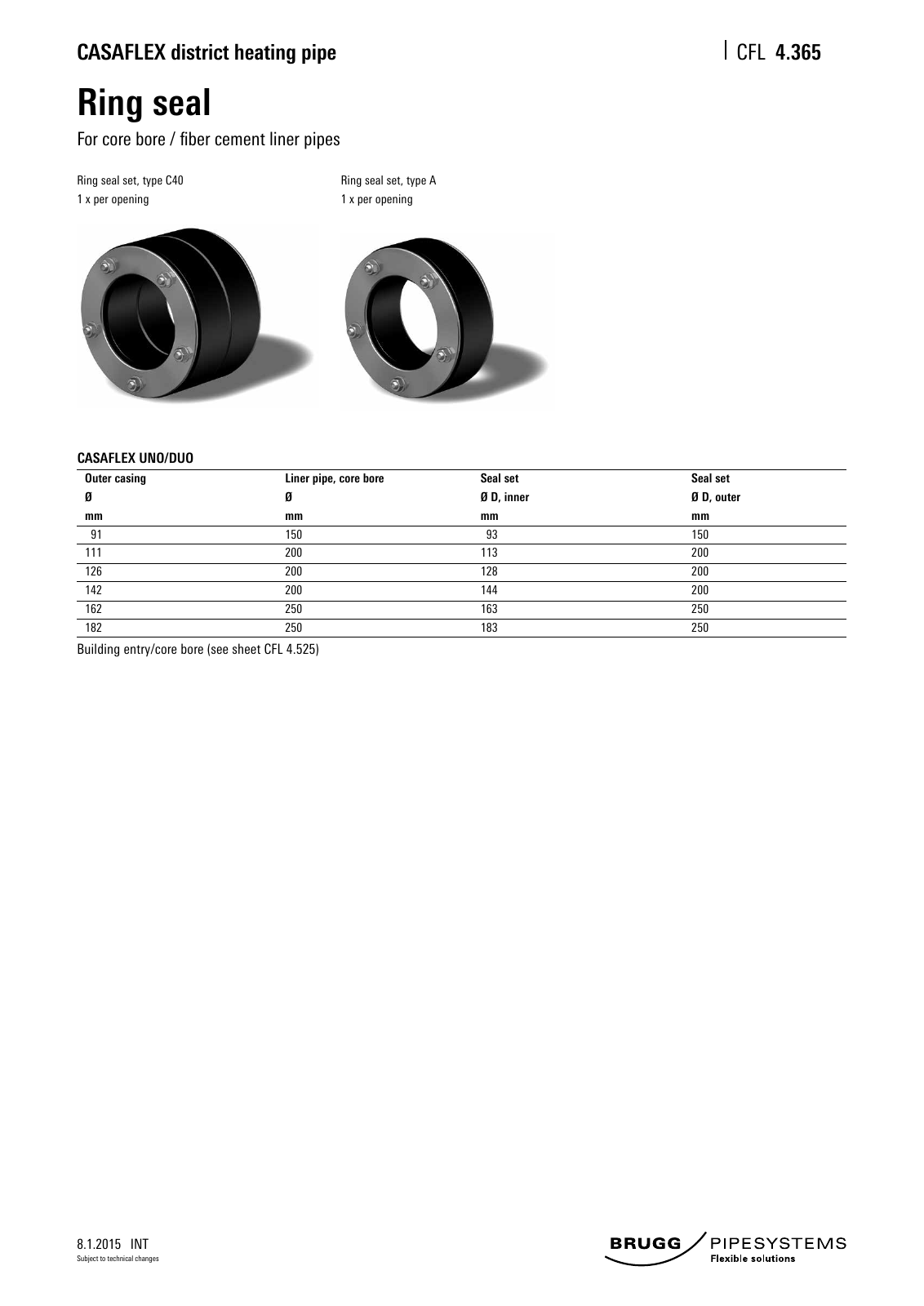

8 1 2015 INT CASAFLEX district heating pipe CFL Subject to technical changes 4 365 Ring seal For core bore fiber cement liner pipes Ring seal set type C40 1 x per opening Ring seal set type A 1 x per opening Outer casing Liner pipe core bore Seal set Seal set Ø Ø Ø D inner Ø D outer mm mm mm mm 91 150 93 150 111 200 113 200 126 200 128 200 142 200 144 200 162 250 163 250 182 250 183 250 CASAFLEX UNO DUO Building entry core bore see sheet CFL 4 525
