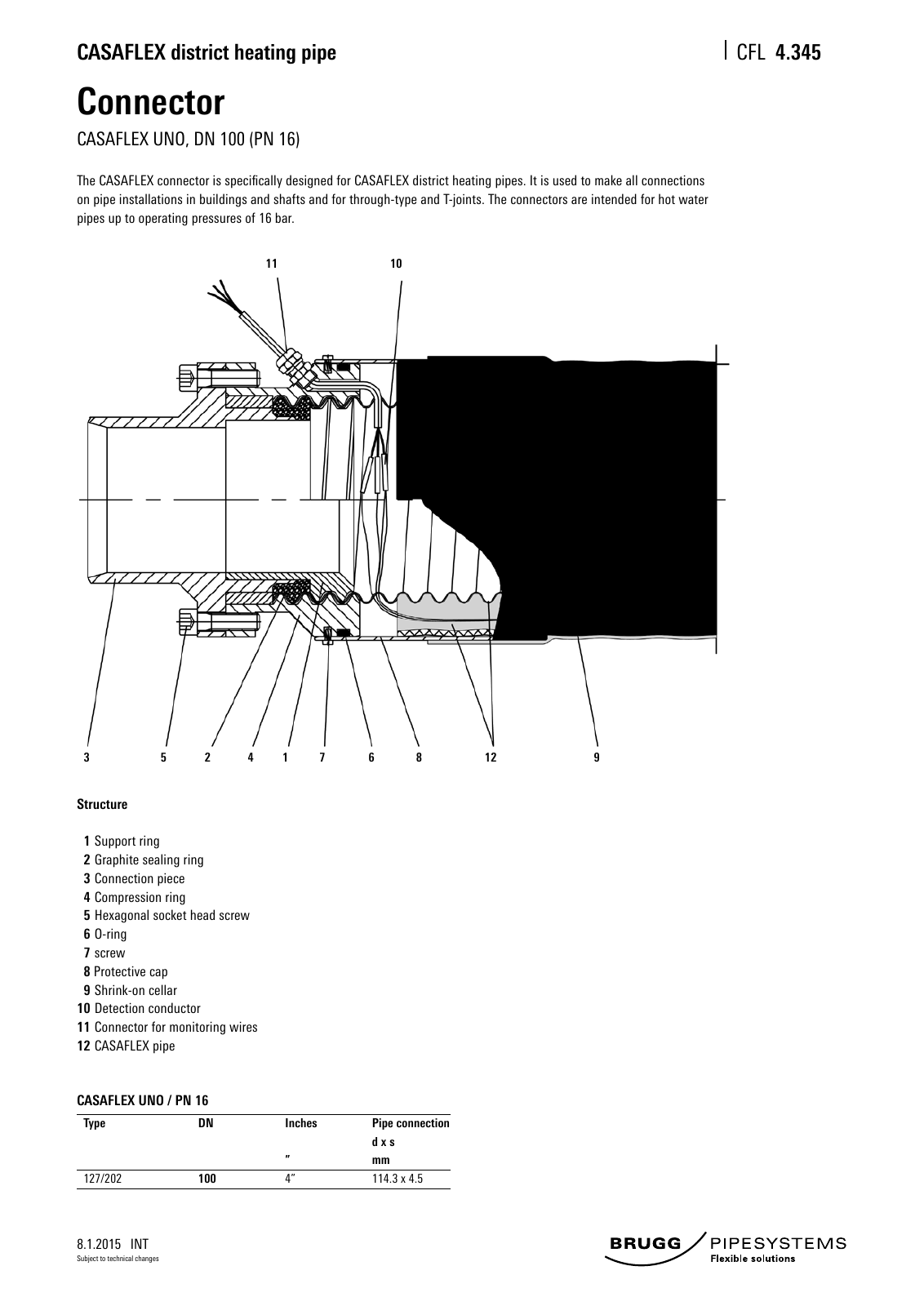

8 1 2015 INT CASAFLEX district heating pipe CFL Subject to technical changes 4 345 Connector CASAFLEX UNO DN 100 PN 16 The CASAFLEX connector is specifically designed for CASAFLEX district heating pipes It is used to make all connections on pipe installations in buildings and shafts and for through type and T joints The connectors are intended for hot water pipes up to operating pressures of 16 bar Structure 1 Support ring 2 Graphite sealing ring 3 Connection piece 4 Compression ring 5 Hexagonal socket head screw 6 O ring 7 screw 8 Protective cap 9 Shrink on cellar 10 Detection conductor 11 Connector for monitoring wires 12 CASAFLEX pipe CASAFLEX UNO PN 16 Type DN Inches Pipe connection d x s mm 127 202 100 4 114 3 x 4 5 11 10 3 5 2 4 1 7 6 8 12 9
