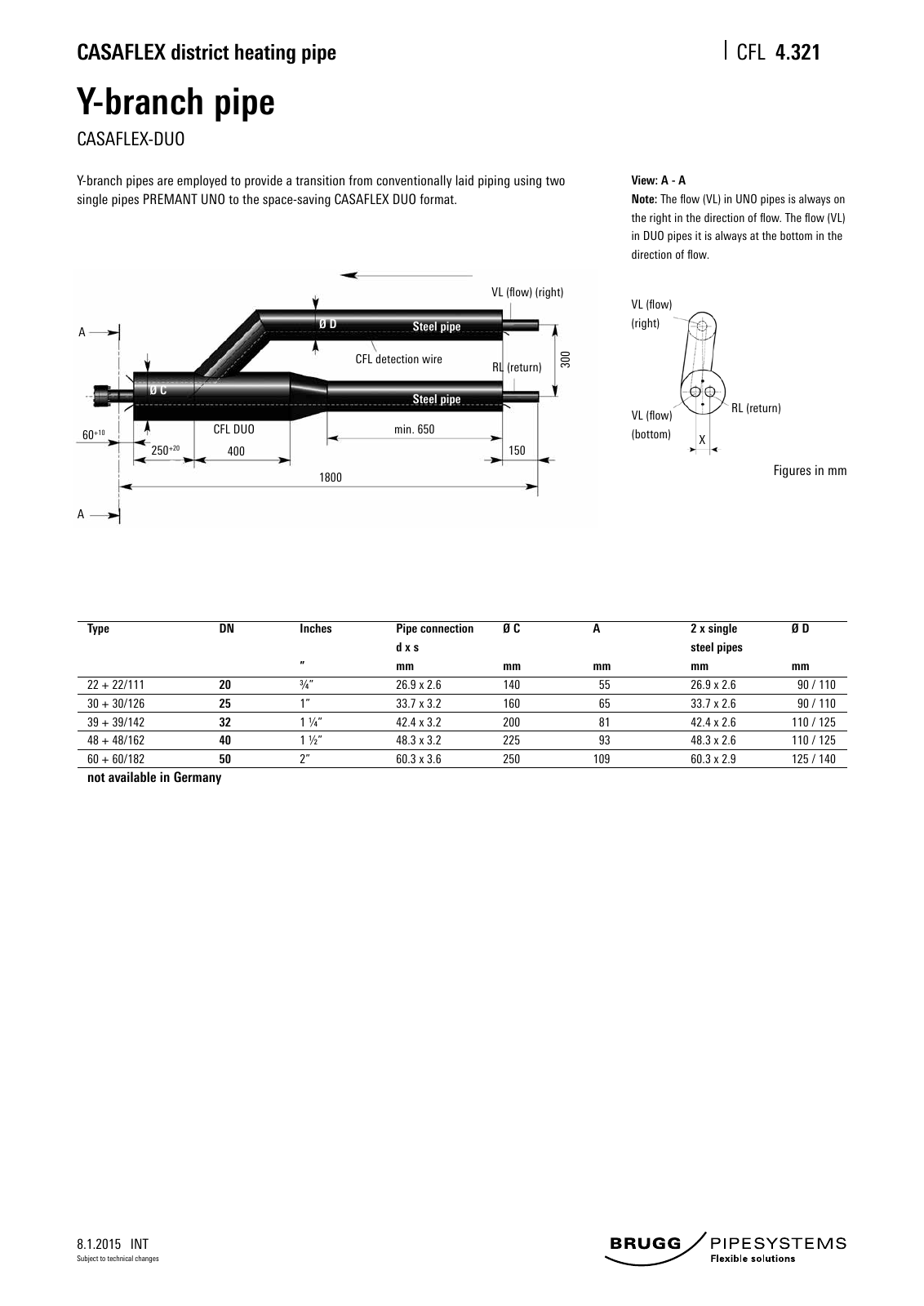

8 1 2015 INT CASAFLEX district heating pipe CFL Subject to technical changes 4 321 Y branch pipe CASAFLEX DUO Y branch pipes are employed to provide a transition from conventionally laid piping using two single pipes PREMANT UNO to the space saving CASAFLEX DUO format Type DN Inches Pipe connection Ø C A 2 x single Ø D d x s steel pipes mm mm mm mm mm 22 22 111 20 26 9 x 2 6 140 55 26 9 x 2 6 90 110 30 30 126 25 1 33 7 x 3 2 160 65 33 7 x 2 6 90 110 39 39 142 32 1 42 4 x 3 2 200 81 42 4 x 2 6 110 125 48 48 162 40 1 48 3 x 3 2 225 93 48 3 x 2 6 110 125 60 60 182 50 2 60 3 x 3 6 250 109 60 3 x 2 9 125 140 not available in Germany 400250 20 60 10 150 VL flow right RL return 3 00CFL detection wire CFL DUO Ø C Figures in mm1800 Steel pipe A A RL return View A A Note The flow VL in UNO pipes is always on the right in the direction of flow The flow VL in DUO pipes it is always at the bottom in the direction of flow Steel pipe VL flow bottom VL flow right X min 650 Ø C Ø D
