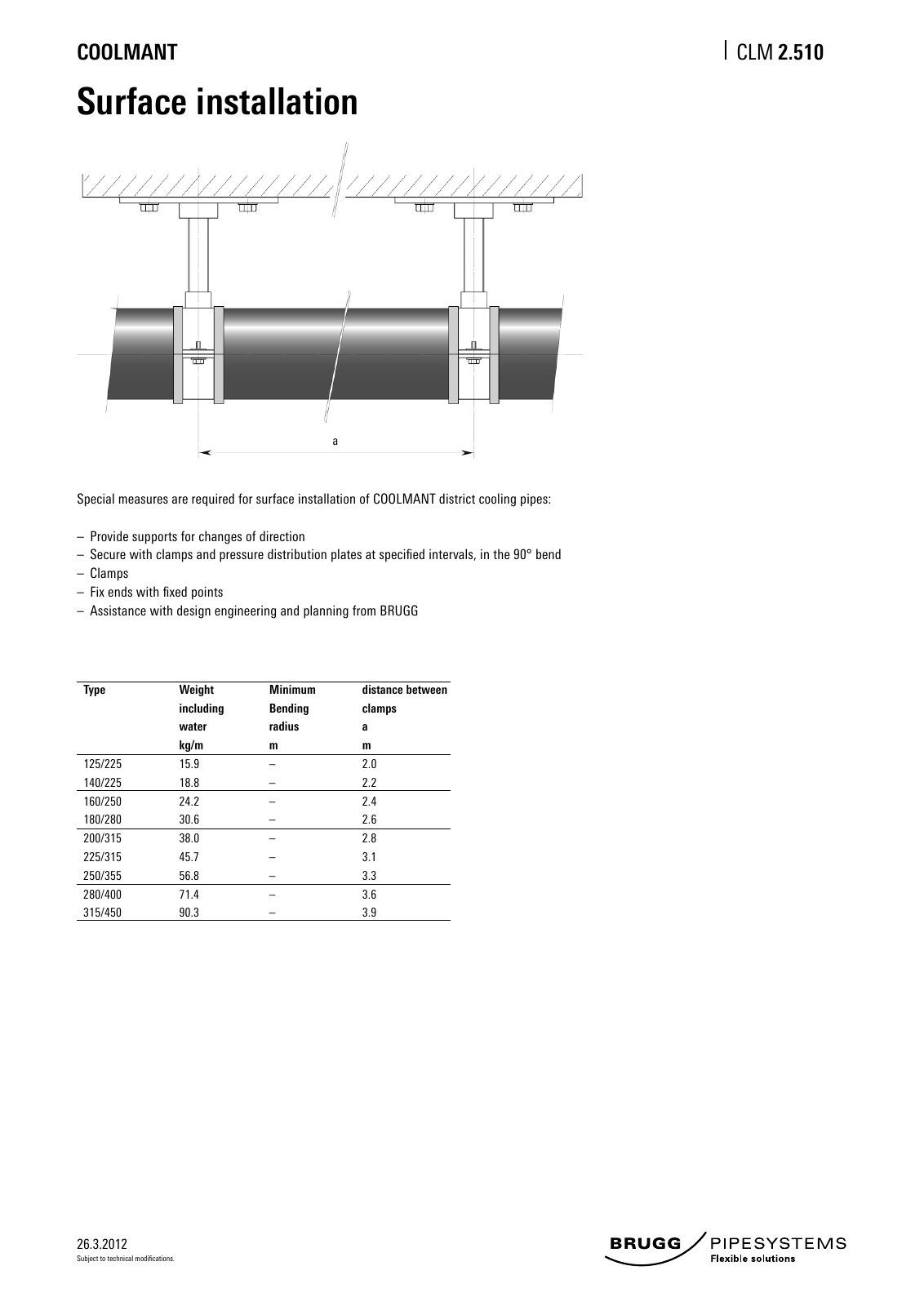

26 3 2012 COOLMANT CLM Subject to technical modifications a Special measures are required for surface installation of COOLMANT district cooling pipes Provide supports for changes of direction Secure with clamps and pressure distribution plates at specified intervals in the 90 bend Clamps Fix ends with fixed points Assistance with design engineering and planning from BRUGG Surface installation 2 510 Type Weight Minimum distance between including Bending clamps water radius a kg m m m 125 225 15 9 2 0 140 225 18 8 2 2 160 250 24 2 2 4 180 280 30 6 2 6 200 315 38 0 2 8 225 315 45 7 3 1 250 355 56 8 3 3 280 400 71 4 3 6 315 450 90 3 3 9
