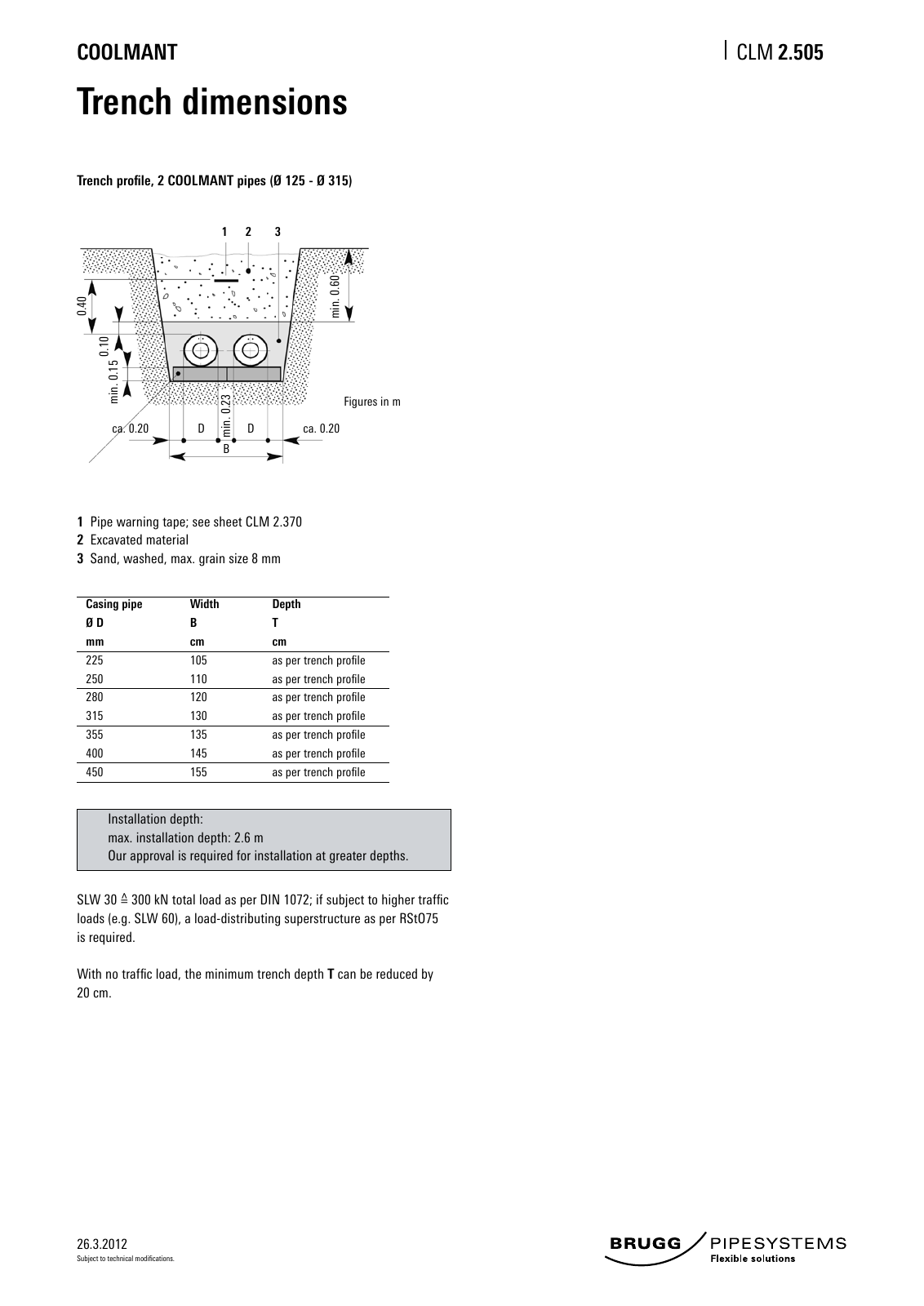

26 3 2012 COOLMANT CLM Subject to technical modifications Trench dimensions Trench profile 2 COOLMANT pipes Ø 125 Ø 315 1 Pipe warning tape see sheet CLM 2 370 2 Excavated material 3 Sand washed max grain size 8 mm SLW 30 300 kN total load as per DIN 1072 if subject to higher traffic loads e g SLW 60 a load distributing superstructure as per RStO75 is required With no traffic load the minimum trench depth T can be reduced by 20 cm Installation depth max installation depth 2 6 m Our approval is required for installation at greater depths 2 505 B D ca 0 20ca 0 20 m in 0 2 3m in 0 1 5 m in 0 6 0 0 40 0 10 D 1 2 3 Figures in m Casing pipe Width Depth Ø D B T mm cm cm 225 105 as per trench profile 250 110 as per trench profile 280 120 as per trench profile 315 130 as per trench profile 355 135 as per trench profile 400 145 as per trench profile 450 155 as per trench profile
